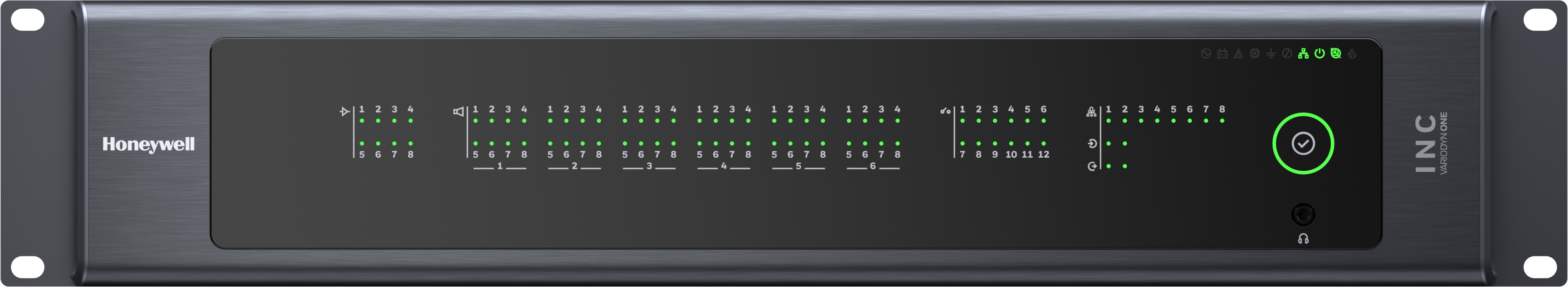

INC (Intelligent Network Controller)

585000

Approval: EN 54-16

The INC (Intelligent Network Controller), is the main controller of the VARIODYN ONE PA/VA system. It is responsible for managing and monitoring all key components of the system including power amplifiers, speaker lines and call stations, etc.
• Supports 8 to 48 speaker circuits per controller (expand using field mountable Speaker Circuit Modules with 8 speaker circuits / module)
• Inbuilt Relay Matrix mode
• Supports up to 8 Amplifier channels
• Supports 8 simultaneous Audio per controller
• Inbuilt 8 hours of audio storage
• Intuitive LED interface ensuring you can easily understand the system status
Main power supply AC 115 V - 230 V (-15% … +10%), 50 … 60 Hz
Backup power supply
21.5 V - 28.8 V DC
Sampling rate
48 kHz, 24 bit
Encode/Decode
VARIODYN® ONE ADPCM
Audio storage
1.5 GB
Relative humidity
<95%, No condensing
Operation temperature
-5 °C … +55 °C
Storage temperature
-40 °C … +70 °C
Dimensions
(W x H x D) 483 x 88 x 415 mm
Weight
approx. 12.45 kg

585020 - Eight Speaker Line Module
585301- 8 Channel amplifier output cable
585302- 4 Channel amplifier output cable
585303- 2 Channel amplifier output cable
585304- 1 Channel amplifier output cable
583491A - Cat5 patch Cable, 0.5m (green)
