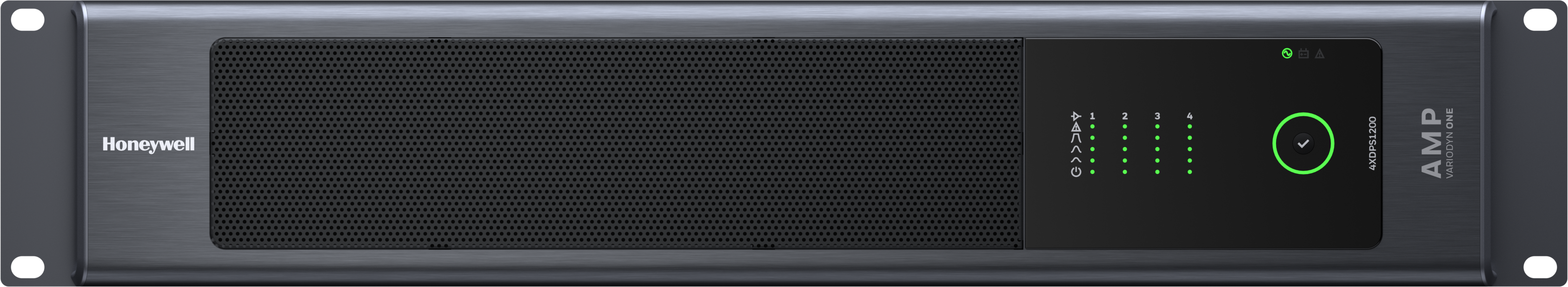

• Four direct-drive amplifier channels per amplifier
• Inbuilt Power Save mode
• Flexibility to program one channel as a backup channel
• Futuristic design to ensure great thermal performance and ease of installation
• Intuitive display interface to ensure you easily understand the device status
• Power Sharing Technology
Mains voltage |
230 V AC, +10%/-5%
|
Frequency range |
50 … 60 Hz
|
Emergency power supply |
21,5 V DC … 28,5 V DC
|
Rated current @ |
230 V AC *6 4.0 A
|
Rated current @ |
24 V DC*6 25.9 A
|
Current (1 kHz sinus/1 min.) |
24 V DC*7 57.0 A
|
Output power |
*8 1200 W in total, single channel max. 500
|
Technology |
Class D
|
Transmission |
range 20 … 22 kHz
|
Input |
level 0 dBu
|
System input |
impedance 20 kOhm
|
Signal to noise ratio |
≥ 90 dB (A)
|
Channel separation |
≥ 83 dB
|
Distortion factor |
1 kHz ≤ 0.5 %
|
Efficiency |
≥ 80 %
|
Ambient temperature |
-5 °C … +55 °C
|
Storage temperature
|
-10 °C … +55 °C |
Humidity
|
up to 93 % rel. hum. (non-condensing) |
Housing
|
Metal
|
Color
|
gray, similar to RAL 7016
|
Weight
|
Approx. 11.5 kg
|
Dimensions
|
(w x h x d) 483 x 88 x 401 mm (2HU)
|
585302 4 Channel amplifier output cable
585303 2 Channel amplifier output cable
585304 1 Channel amplifier output cable
585305 Amplifier backup cable - 1 channel, 0.5m
585306 Amplifier backup cable - 2 channel
585307 Amplifier backup cable - 4 channel
585305.01 Amplifier backup cable - 1 channel, 2m
583413 Cable set for connecting batteries 4XDB
583491A Cat5 patch Cable, 0.5m (green)
