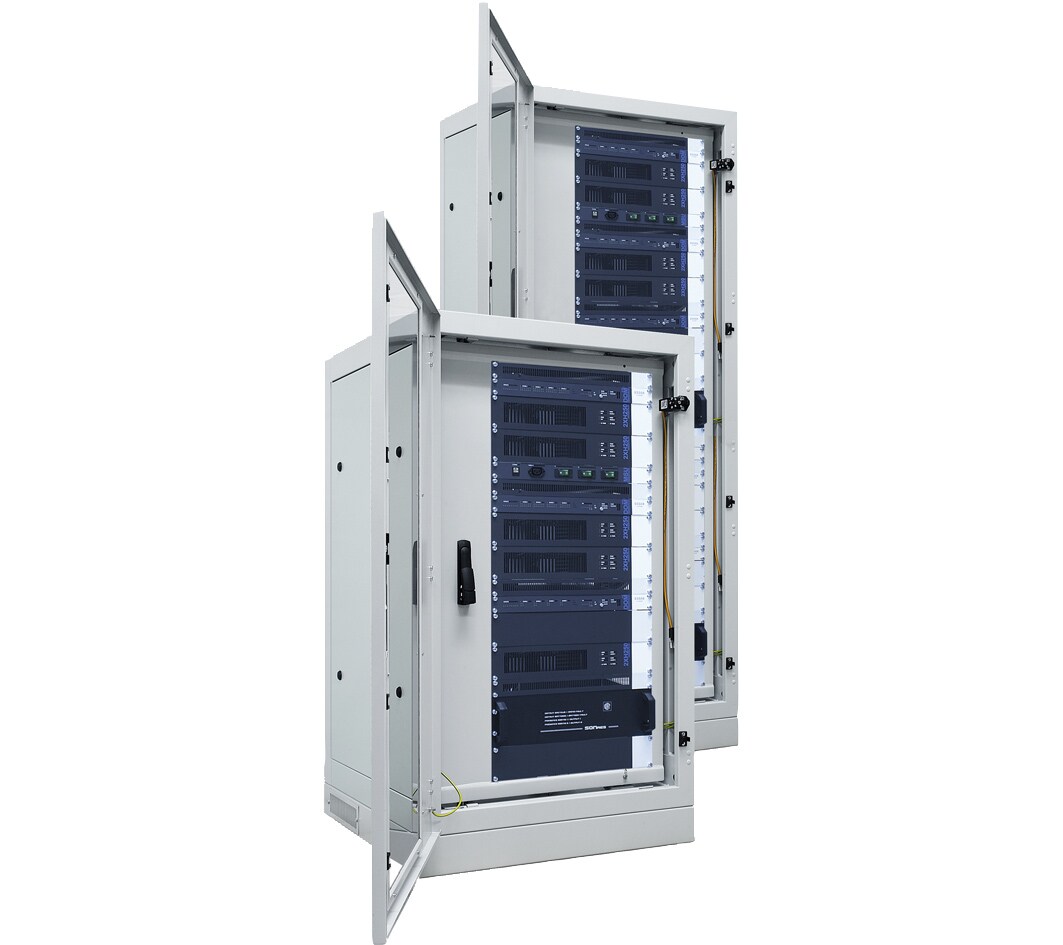

Upright cabinet with hinged frame, 24 HU

584900

Approval: G 210122

Stable and practical swivel frame cabinet for easy installation and easy access during servicing.
  • Completely detachable
  • Pivoting frame and door with little effort in hinge is changeable

Scope of Delivery:

Pivot frame Welded 100 mm plinth, with holes for floor mounting and cable entry Rear and side walls detachable, on request, and ventilated Three-part base plate Roof with a brush strip and cover plate Front door with a 4 mm ESG pane Door lock with a swivel lever for 40 mm PHZ and multi point locking Cabinet completely grounded Screws set M6 (VE 50 set)
Installation depth450 mm
Colorgrey, similar to RAL 7035
Weight kg approx. 140 kg
Channel separation> 75 dB
Harmonic distortion at nominal level@ 1 kHz
Maximum weight load250 kg
Type of protectionIP 40
DimensionsW: 800 mm H: 1400 mm D: 800 mm (H: incl. 100 mm base)
  • 584921 Angled Sliding Rail (set) 250 mm deep, for hinged frames
  • 584922 Cable Clamping Rail Set, 2 HU
