External power supply DCU 2403

805683

Approval: G 210052

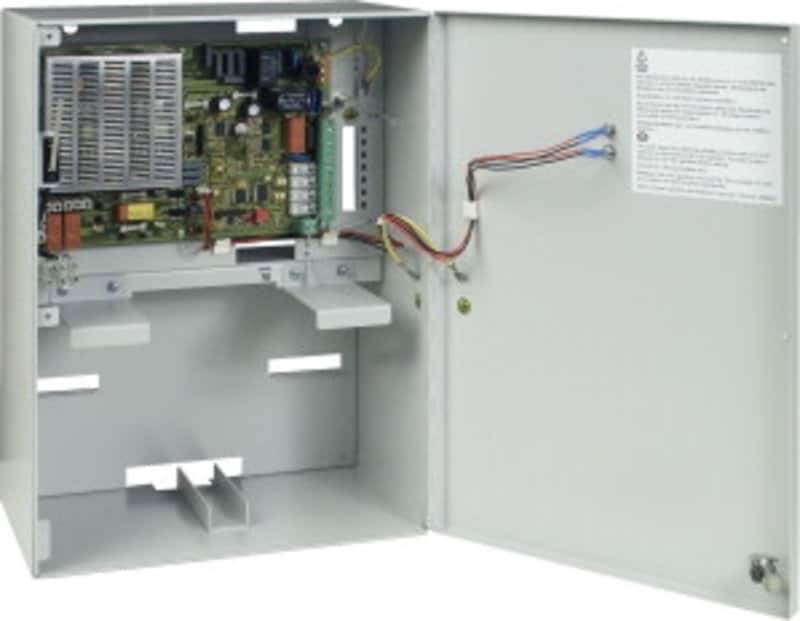

External power supply in a compact metal housing for up to two 12 V/ 24 Ah batteries. This power supply facilitates an uninterruptable supply of power. Integration into the esserbus/esserbus-Plus optional via optional adapter card (Part No. 805684.10) and esserbus Transponder (Part No. 808623). Four floating relay outputs are available for the transmission of disturbances (power failure, ground fault, battery failure and collective fault). External LED display for operation and collective fault on the lockable front door, internal LEDs for detailed recognition of emergency power operation, individual monitoring of battery failure and ground fault.


  • Reversible output voltage 12 V DC or 24 V DC
  • Simple integration into esserbus/esserbus-Plus
  • Internal service LED displays
  • Four floating relay outputs
  • Monitoring of mains voltage with selectable delay time
  • Individual battery monitoring for emergency power operation
  • Switchable ground fault Monitoring
  • Front door with cover contact
  • in compliance with EN 54-4/A2
  • for use in voice alarms to supply recessed components, such as at fiber optic recessed callstations

Additonal Information
Batteries used in the power supply must be tested and VdS approved. Batteries of the same age from the same manufacturer coming from the same production batch must be used when connecting batteries in parallel.

Scope of Delivery
Pre-installed connector cable for 12 V / 24 Ah SB-type battery (Part No. 018006)
Housing lock with key
Device accessory kit contains: dummy cover, jumper bar for standby terminal, device fuses, jumper for setup of output voltage

Battery capacity max. 48 Ah @ 12 V DC / max. 24 Ah @ 24 V DC
Output voltage

12 V DC / 24 V DC; ± 1 % (temperature controlled)

Output current

6 A @ 12 V DC / 3 A @ 24 V DC

Type of protection IP 30
Rated voltage VAC 230 V AC
Housing sheet steel
Ambient temperature -5 °C ... 40 °C
Connection Terminal max. 2,5 mm²
Dimensions

W: 310 mm H: 410 mm D: 211 mm

Weight approx. 23 kg incl. batteries each 12 V DC / 24 Ah
Color gray, similar to RAL 7035
Air humidity < 95 % (non condensing)
Contact load relay max. 125 V / 1,5 A / 60 VA
Storage temperature -20 ° C ... 45 ° C
  • 805684.10 Adapter card for DCU 2402
  • 808623 esserbus alarm transponder
