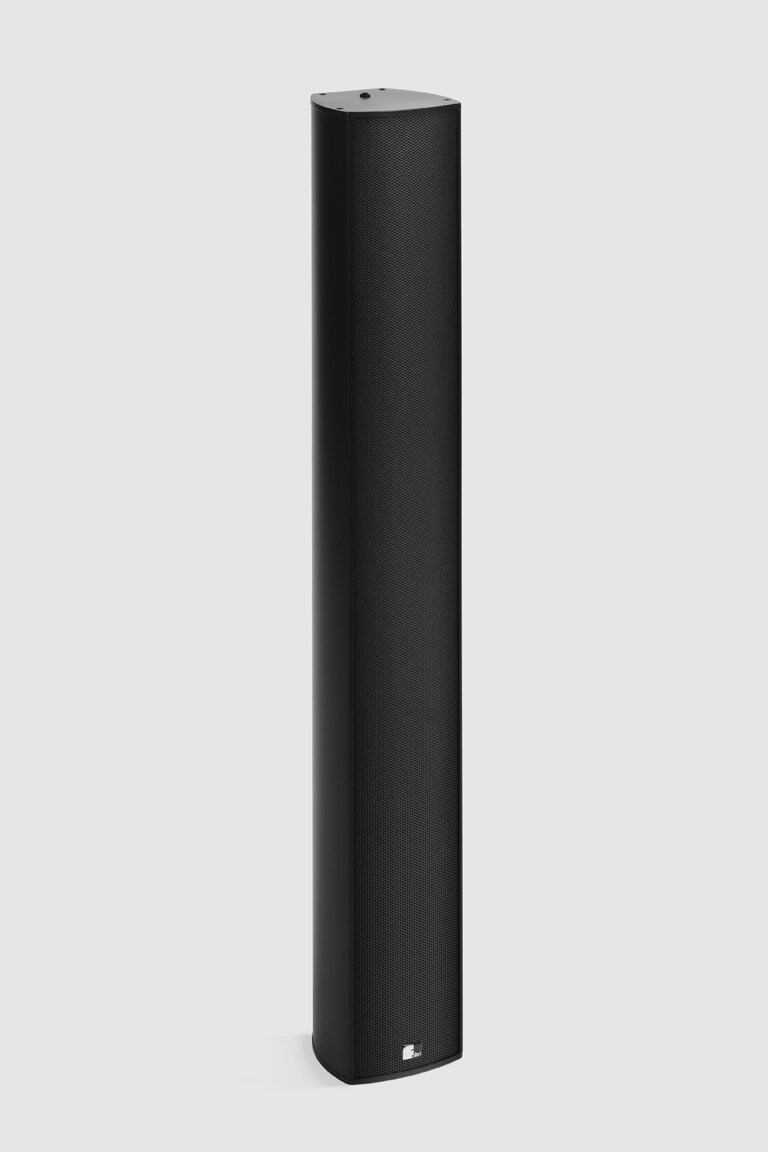

Linea LEN-100 EN54-24, black

582654.B

Passive 100 V loudspeaker, with weatherproof aluminium housing, designed for use with voice alarm systems - certified according to EN 54-24, Type B, equipped with eight high-quality 4” drivers with treated cones for optimum efficiency in speech and voice alarms.
  • EN 54-24 certified, 100 V loudspeaker for use with voice alarm systems
  • suitable for both indoor and outdoor use
  • exceptionally even sound dispersion
  • SIDE LOBE FREE – passive realization
  • equipped with high performance speakers
  • excellent speech intelligibility and sound quality
  • a long reach
  • weatherproof without requiring additional protection (protection class IP54 in accordance with IEC 529 / EN 60529)
  • ball impact resistant front grille made from galvanised sheet steel
Components 8 x 4” drivers with treated cones
2-way design yes
Sensitivity 1 W @ 4 m in accordance with EN 54-24 84 dB SPL
SPLmax 100 V @ 4 m in accordance with EN 54-24 102 dB SPL
Transformer options, power handling in acc. with EN 54-24 100 V 160 W
Nominal directivity H x V (-6 dB, average @ 1-4 kHz) 130° x 15°
Beam angle (h x w) @ 500 Hz 360° x 55°
Beam angle (h x w) @ 1000 Hz 190° x 25°
Beam angle (h x w) @ 2000 Hz 120° x 15°
Beam angle (h x w) @ 4000 Hz 95° x 8°
Loudspeaker features
Housing weatherproof aluminium housing, powder coated, steel bracings
Mounting points 8 x M6 screw threads
Connectors terminal connectors capable of receiving up to 4 mm², two per pin, terminal cover with dual cable gland for up to 10 mm cable diameter
Standard colours black (RAL 9005), powder-coated
Dimensions (W x H x D) approx. 130 x 990 x 120 mm
Weight approx. 9,5 kg
