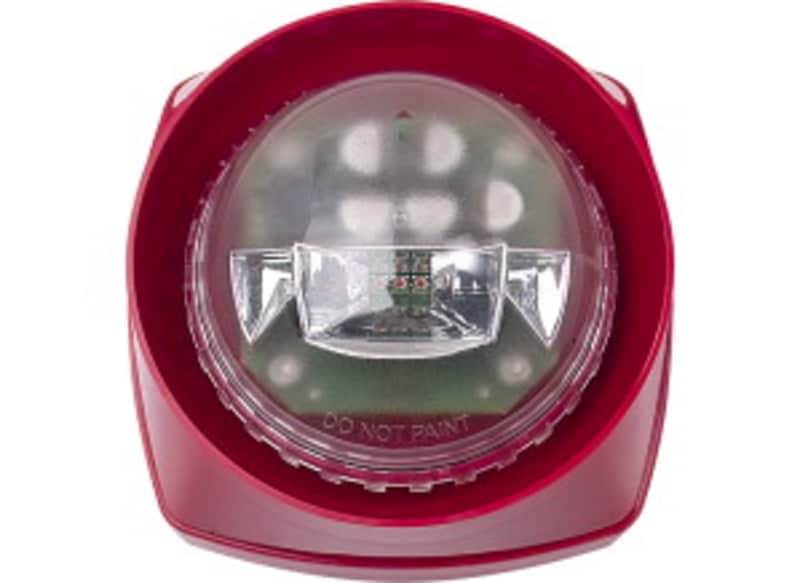

Optical alarm signaling device IQ8Alarm EN 54-23 Kat. W, red flash

807214RR

Approval: VdS requested

Optical signaling device compliant with EN 54-23 for wall mounting with red signal flash and flat base. The signaling device is suitable for square signal ranges W-2.4-5.0.
  • Completely bus supplied alarm device
  • Powered loop compatible
  • Low power consumption
  • Up to 32 alarm devices for each powered loop
  • Each alarm device has built-in isolator
  • EN 54-23 compliant
  • W category
  • Synchronous flash control
  • Up to 5 m, room width

Additional information
Replacement for 807214
Operating voltage 14 ... 42 V DC
Material Flash lamp PC
Frequency of flash approx. 0,5 Hz
Color red, similar to RAL 3020
cap: transparent
Specification EN 54-23 optical alarm signaling device
Weight
approx. 275 g (with base)
Air humidity < 95 % (non-condensing)
Quiescent current @ 19 V DC approx. 55 μA
Type of protection IP 41
Ambient temperature -25 °C ... 70 °C
Dimensions ø: 112 mm H: 78 mm
