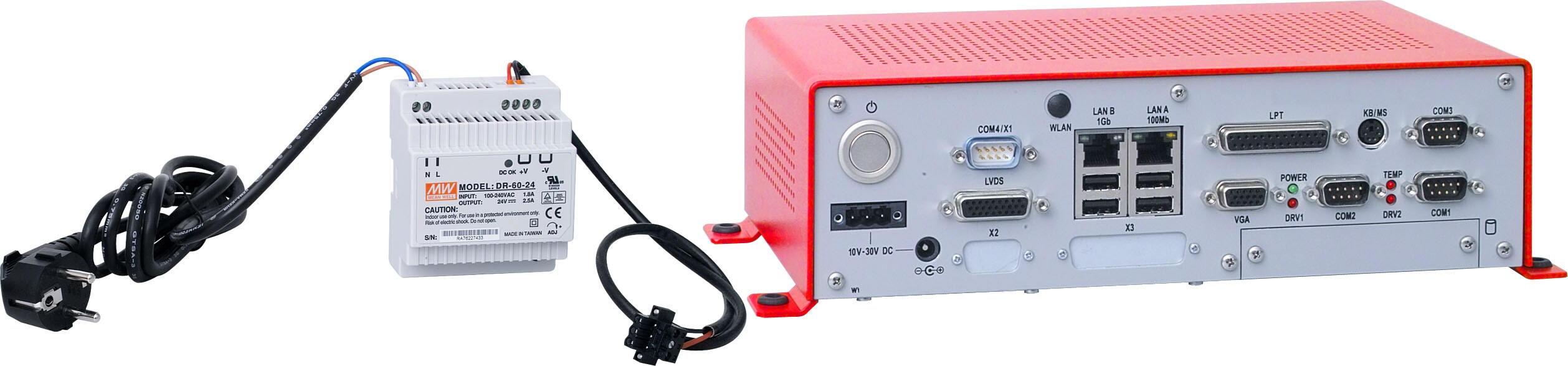

MPG DP7500

on request

The Multiprotocol Gateway DP7500 is suitable for usage in mid-sized objects. The ​maximum number of detection points is 5000 indicating and 3000 indicating and ​switching. One fire detector counts here as a detection point. This device is ready for rear ​wall mounting and can be integrated into existing upright cabinets.
Interface
  • 4 x RS232 9-pol (optional Com4 RS485 optoisol­ated)
  • 1 x RJ45 100/10 Base-T
  • 1 x RJ45 1Gbit Base-T
  • 4 x USB
  • CPU: Pentium M 800MHz
  • RAM: 512MB DDR-RAM
  • Memory: 40GB HD, optional DiscOnChip
  • Operating system: QNX

Scope of Delivery
Multiprotocol Gateway, power supply, cross-over data cable, serial connection cable

Rated Voltage
100 - 240 V AC (power supply)
Rated Frequency
47 ... 63 Hz (power supply)
Operating Voltage
10 ... 30 V DC
Output Voltage
24 V DC (power supply)
Power consumption
40 W
Output current
2,5 A (power supply)
Ambient temperature
5 °C ... 50 °C
Mounting back plane mounting
back plane mounting (power supply)
Air humidity
5% to 90%, non-condensing
Weight approx. 3000 g
approx. 0.6 kg (power supply)
Dimensions W: 292 mm H: 81 mm D: 145 mm
W: 78 mm H: 93 mm D: 67 mm (power supply)
