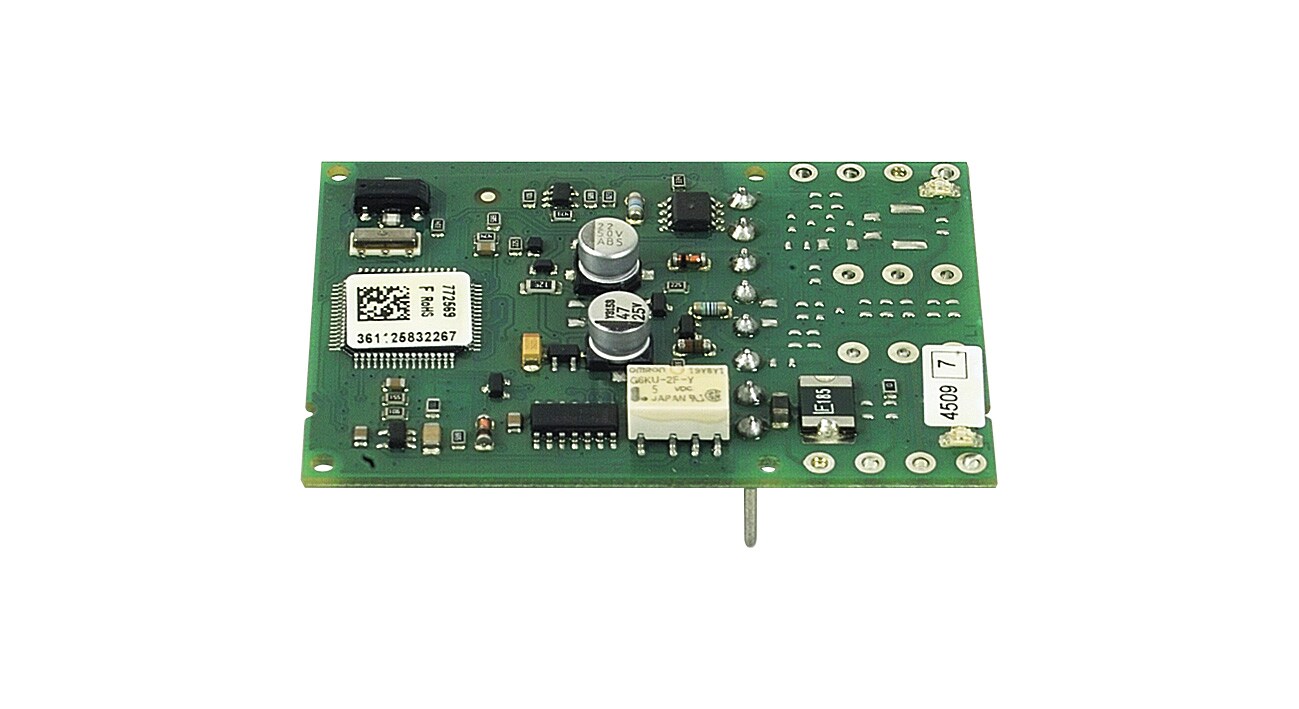

IQ8TAL electronic module with isolator for FCT

804980

Same as 804981 but, with TAL (Technical Alarm) functionality (1 input/1 output).
  • Tool-free assembly on the FCT by simply attaching the module
  • Contact input to trigger a switching function
  • Individually programmable make or break contacts
  • Integrated loop isolator
Alarm displayred LED
Alarm currentapprox. 9 mA
Connection terminalmax. 2,5 mm² (AWG 26-14)
Operation indicatorgreen LED
No. of detector/zonemax. 127 per loop
Quiescent current @ 19 V DCapprox. 45 μA
