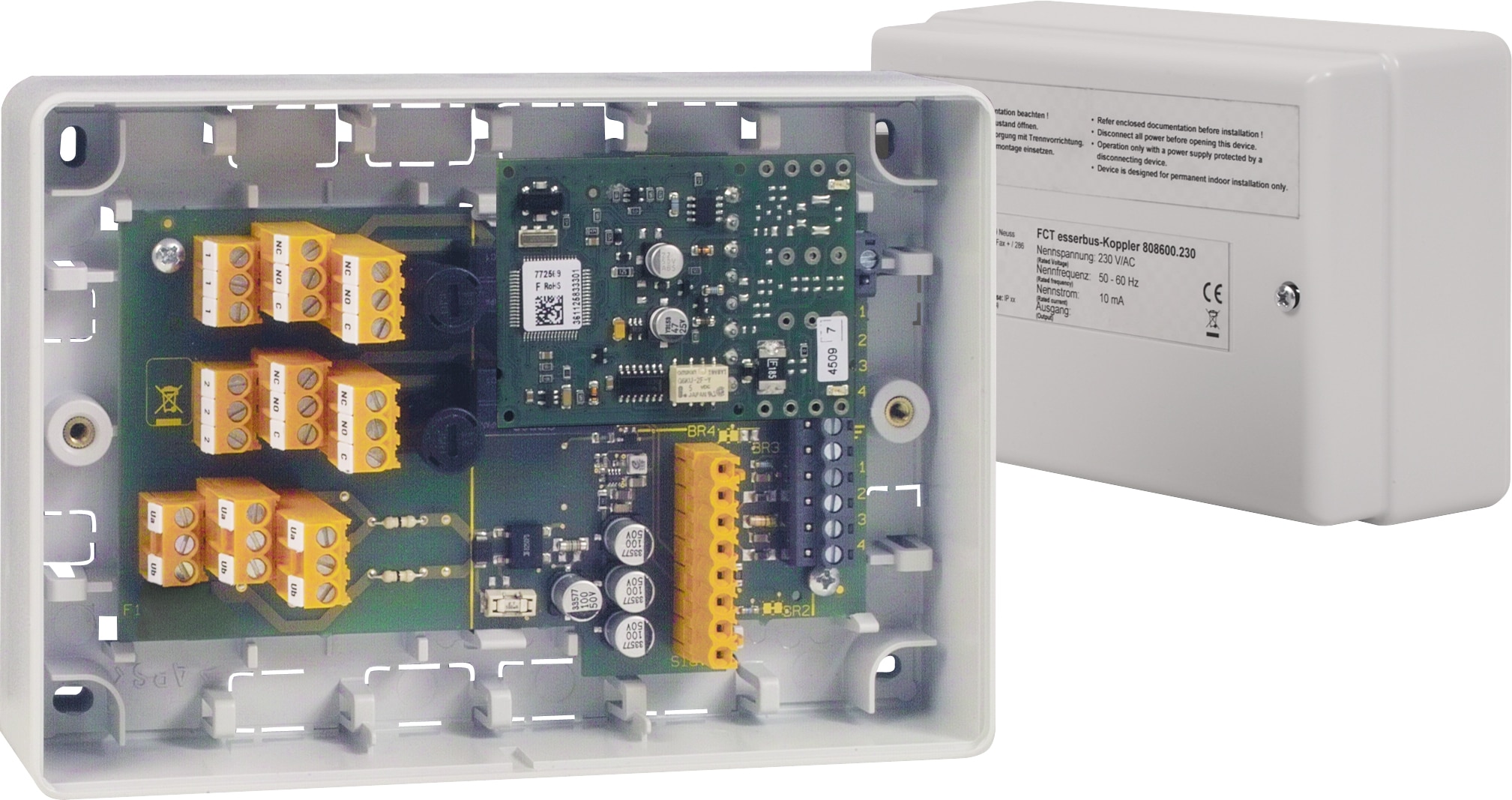

esserbus transponder FCT set, 12 - 24 V

808600.24

Approval: VdS

Same as 808600.230, but 24 V operating voltage.
Additional Information:
The FCT cannot be operated in the following systems:
FACP 80, System 3000 (FACP 3007/3008), FACP 8008, FACP 8000 C/M, ECP 8010
Connection terminalmax. 2,5 mm²
Operating voltage10 ... 30 V DC
CE certificate0786-CPD-20991
Contact load relay30 V DC/4 A, 230 V AC/4 A
Storage temperature-10 °C ... 50 °C
Air humidity< 95 % (non-condensing)
Maximum switching capacitymax. 30 V DC / 230 V AC
Type of protectionIP 30 (in housing) ; IP 55 (with IP-base composition 788655)
Current consumption @ 12 V DCapprox. 200 mA
Current consumption @ 24 V DCapprox. 0 mA
Ambient temperature-5 °C ... 45 °C
VdS-NrG 210091
