Serial interface for WINMAGplus / WINMAGLite

784847

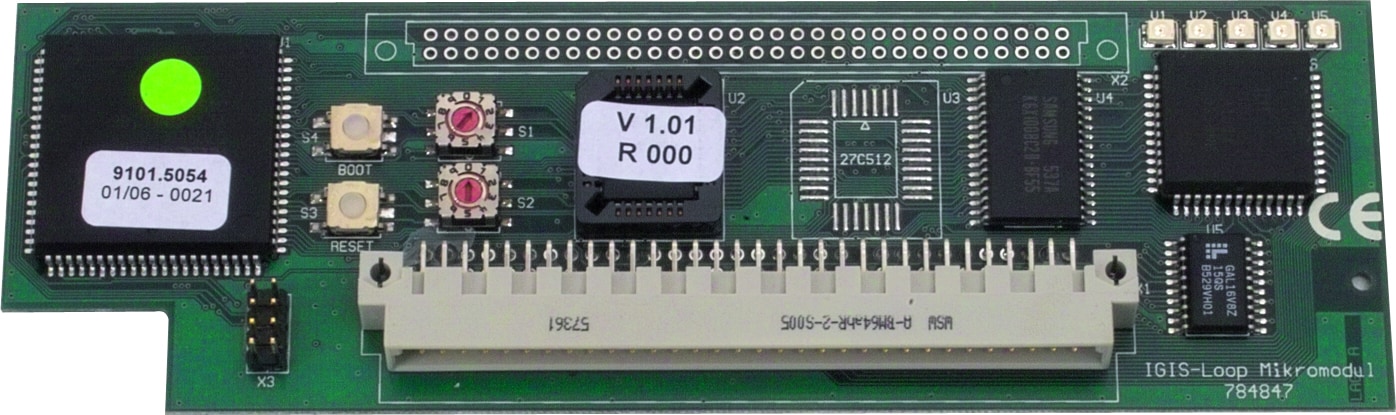

Interface suitable for serially connecting one 800X/IQ8Control fire alarm panel to WINMAGplus/WINMAGLite. The module is plugged to the essernet slot in the control panel. As a result, essernet operation is disabled. For PC connection, the RS 232 isolator module is required (Part No. 784754).
Additional Information:
The control panel is connected to the PC via the RS 232 cable for a maximum distance of 1,000m, which is not supplied as standard.
Phase out date01.09.2012
Operating voltage10.5 ... 15 V DC
Quiescent current @ 12 V DCapprox. 85 mA
  • 784754 Adapter module ADP-PRS-232
