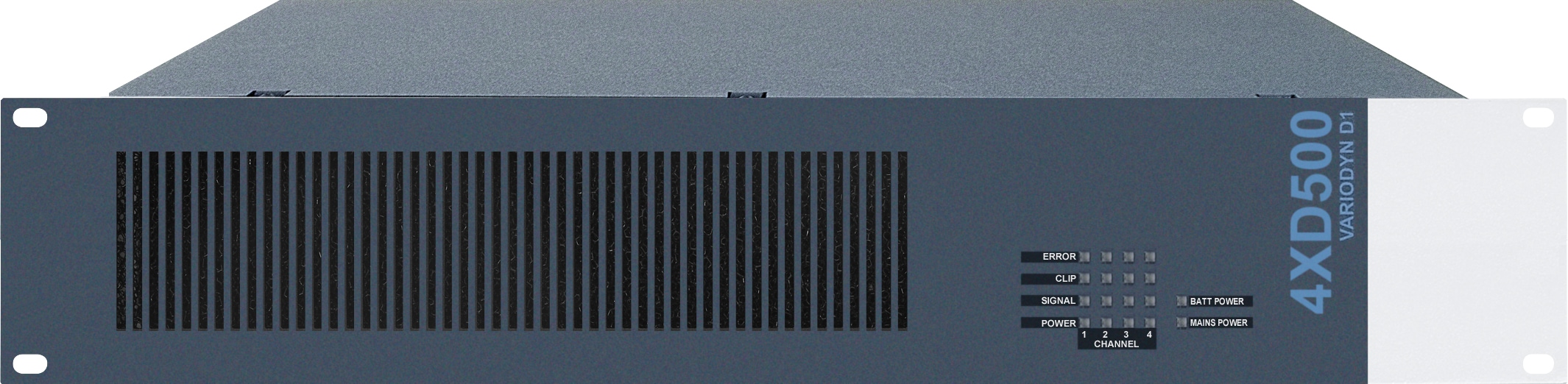

Four-channel amplifier 4XD500

580249.11

Approval: Part of EN 54-16

Power amplifier for the voice alarm system VARIODYN D1 in class D technologies with four independent power channels and galvanic isolated 100 V direct outputs, symmetric inputs, inrush current limitation and soft start. In comparison to our 4XDxxxB series amplifiers, one amplifier can back up another amplifier. Four built-in fans with smooth temperature controlled speed control.

Features & Benefits
Technical Data
Accessories
Documents

Built- in electronic protective circuit against thermal overload, DC signals, sub frequent signals, short circuit, open outputs and HF interference
Individual status LEDs indicate channel CLIP, PROTECT, SIGNAL, POWER, LINE and 24 V DC power Back switch contact for sequential remote power
2 back fault message contacts
Back fault message contact for missing 24 V emergency power supply
24 V emergency power supply input
Suitable for use with loop technology

Rated voltage	230 V AC
Rated frequency	50 ... 60 Hz (+10% / -5%)
Power output	4 x 500 W
Color	gray, similar to RAL 7016
Ambient temperature	-5 °C ... 55 °C
Weight	approx. 14 kg
Dimensions	W: 484 mm H: 88 mm D: 400 mm (2 HU, 19")
Emergency power supply	24 V DC
Technology	Class D
Channel separation	> 92 dB
Harmonic distortion at nominal level	< 0.02 %

583491 Input cable DOM amplifier, 0.5 m, green (two times needed)
583477.21 Output cable 2 amplifier DOM

Type	Name	Size
Promotional - Product Data Sheets
	Product data sheet VARIODYN D1 Power amplifier 4XD300 (4 x 300 W), 4XD500 (4 x 500 W), Class D_d800201_Version: 11.2013	238 KB
