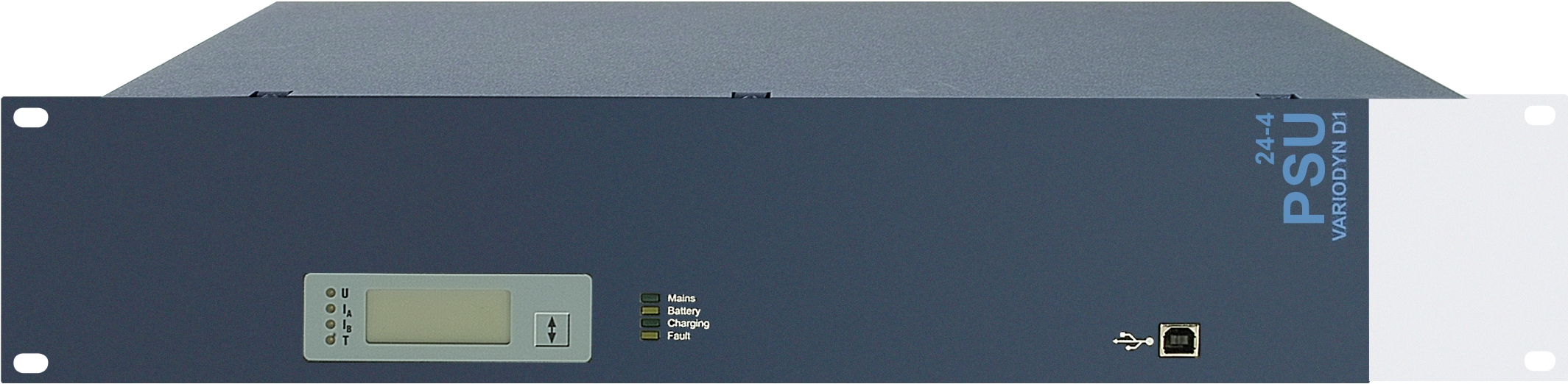

Emergency power supply PSU 24 V-2

581723

Part of EN 54-16 approval

Emergency manager for use as emergency power supply of an Voice Alarm – application.
  • Emergency power supply in the 2 HU enclosure
  • Outputs for control devices such as DOM or Comprio net
  • 1 individually fused high power outputs for output amplifiers (12 outputs in total but one output cannot be used)
  • Authorization pursuant to EN 54-4(A2)
  • LED displays and display for status reports
  • Potential-free contacts for the transmission of alarm messages
  • Battery capacity up to a total of 640 Ah
  • Maximum output current in case of emergency power situation 372 A
Additional Information:
Up to 2 x 2 batteries of the same kind are required for each emergency power supply.
Rated voltage
230 V AC
Rated frequency
50 ... 60 Hz
Output current
max. 372 A (battery)
Battery capacity
max. 640 Ah
Emergency power supply
24 V DC
Ambient temperature -5 °C ... 40 °C
Storage temperature
-40 °C ... 85 °C
Dimensions W: 483 mm H: 89 mm D: 328 mm
Weight
approx. 8.8 kg
  • 581730 battery for emergency power supply 12 V / 105 Ah
  • 581731 battery for emergency power supply 12 V / 150 Ah
